Dock Upgrade at the Lindberg Resort
Taken September 4 to 19, 2010

This is a quick pictorial summary of the repairs and upgrade that were made to completely remove the rotted dock and replace it with updated wood products.  In particular, the structural part that is subjected to submersion by wave action is pressure treated by chemicals that are much more resistant to rot but yet friendly to fish, plants and humans in the water.  The decking material was again a composite of plastic and ground wood which is extremely resistant to rot.

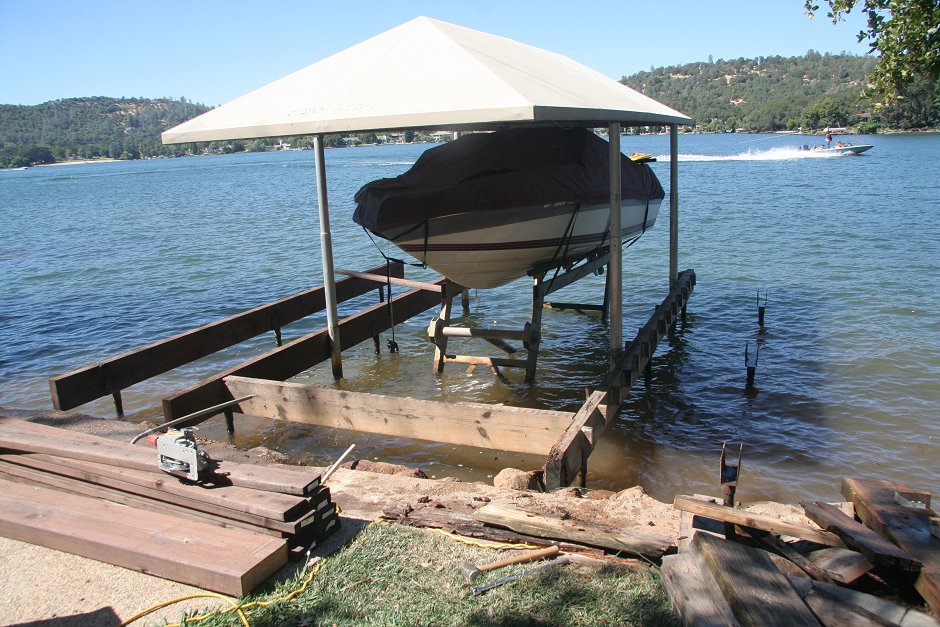

All of the rotten wood is being removed and replaced by new wood.

New super-pressure-treated structure in place.

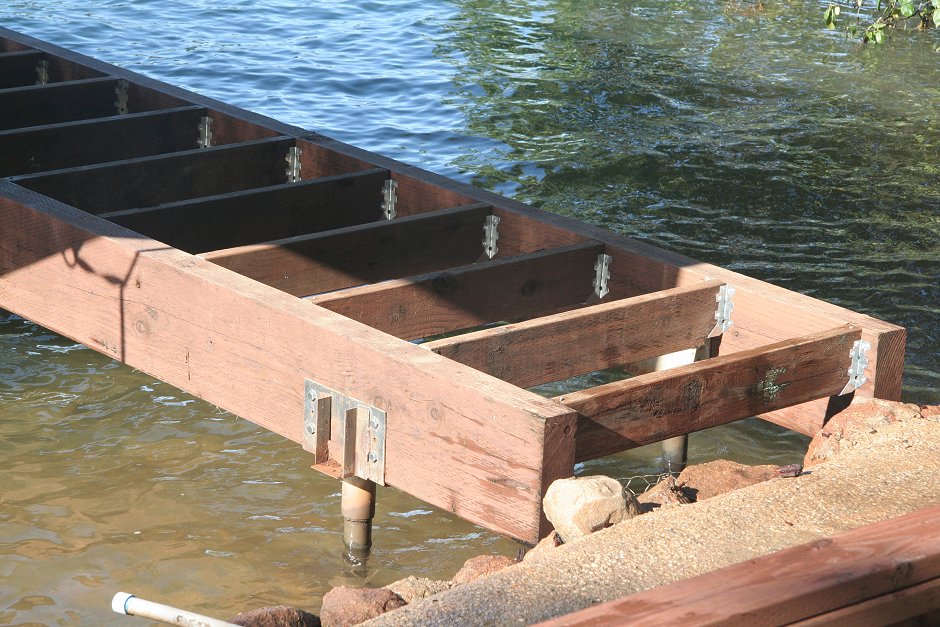

Close-up of new structure. Hanger for another main beam in foreground.

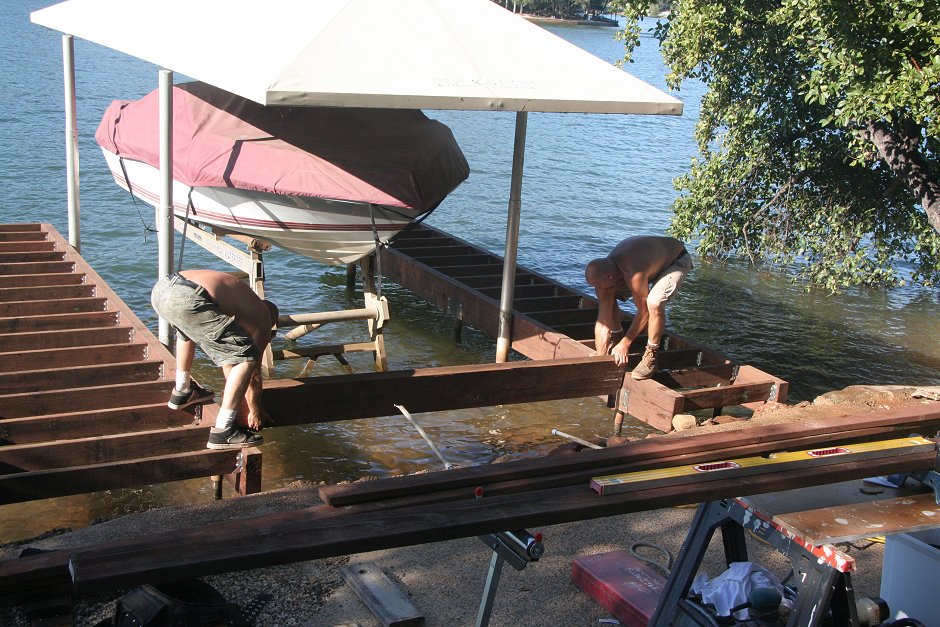

The main crossbeam is dropped into the hangers.

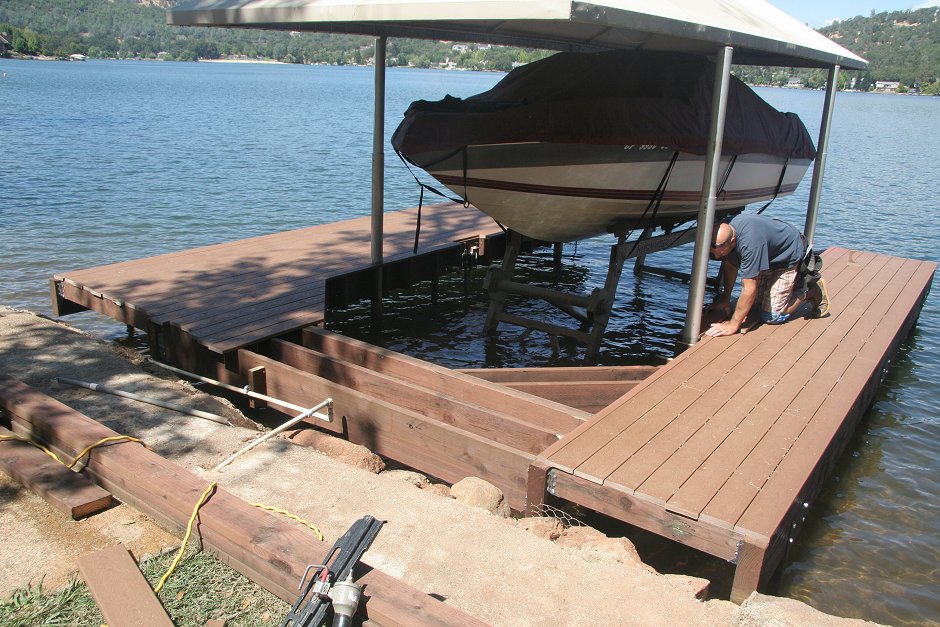

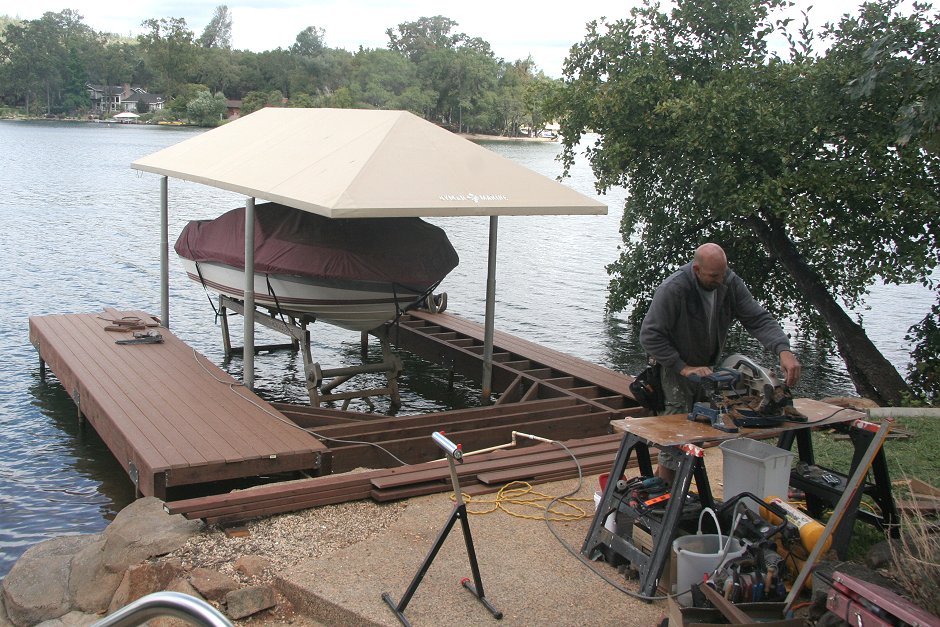

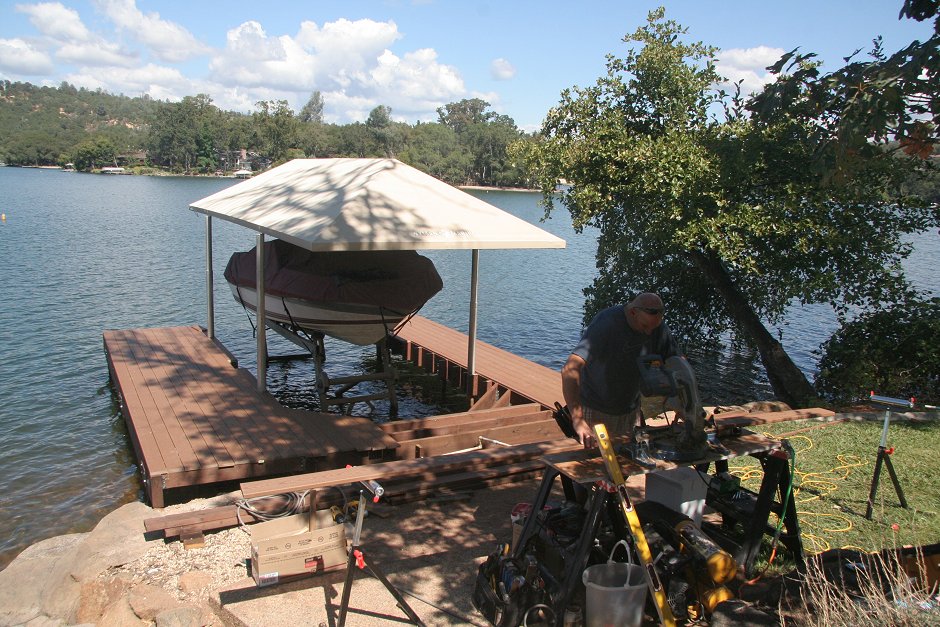

New composite decking being put into place on the structural joists.

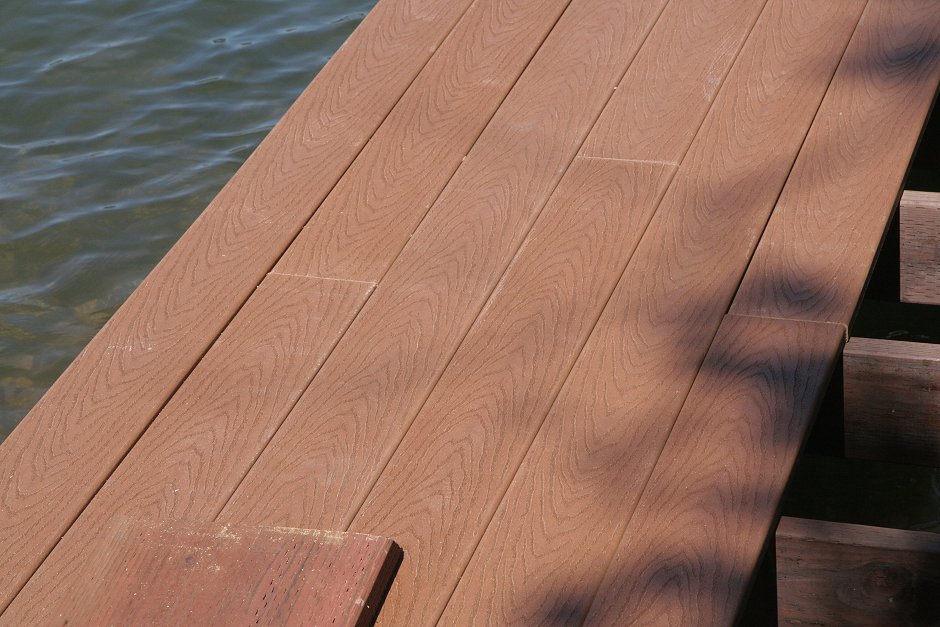

Close-up of composite decking.

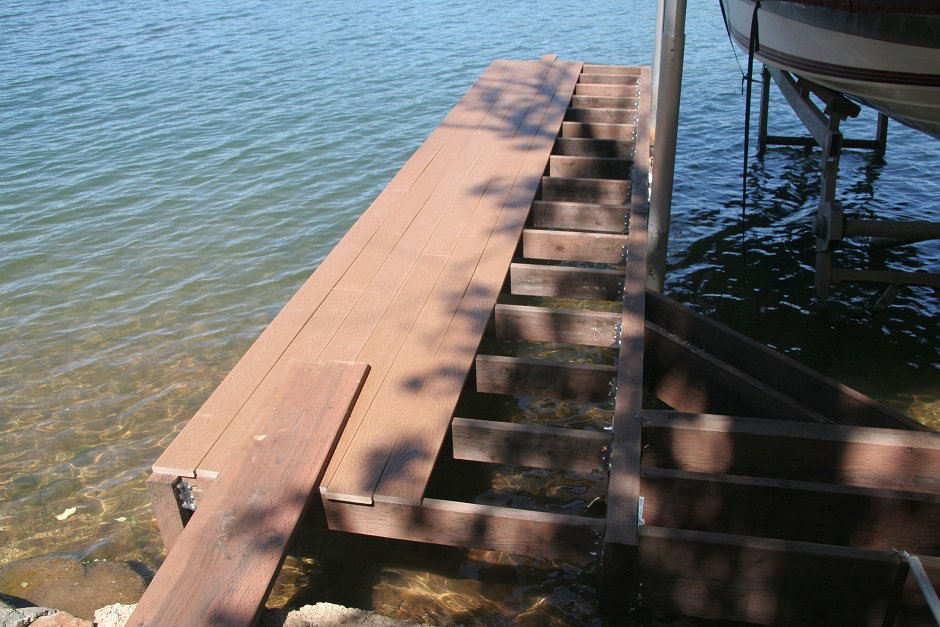

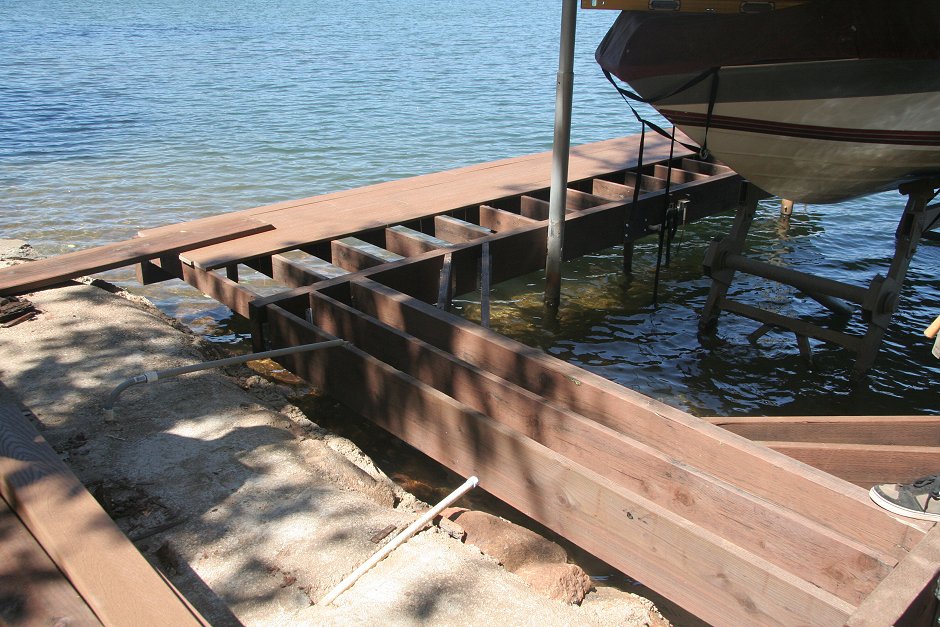

Cross members of the dock.


Angled bow end of dock structure in place.

Attachment blocks for side boards can be seen on the right.

Installing a side board.

Rubber bumper strips have been installed all around the top of the side boards.

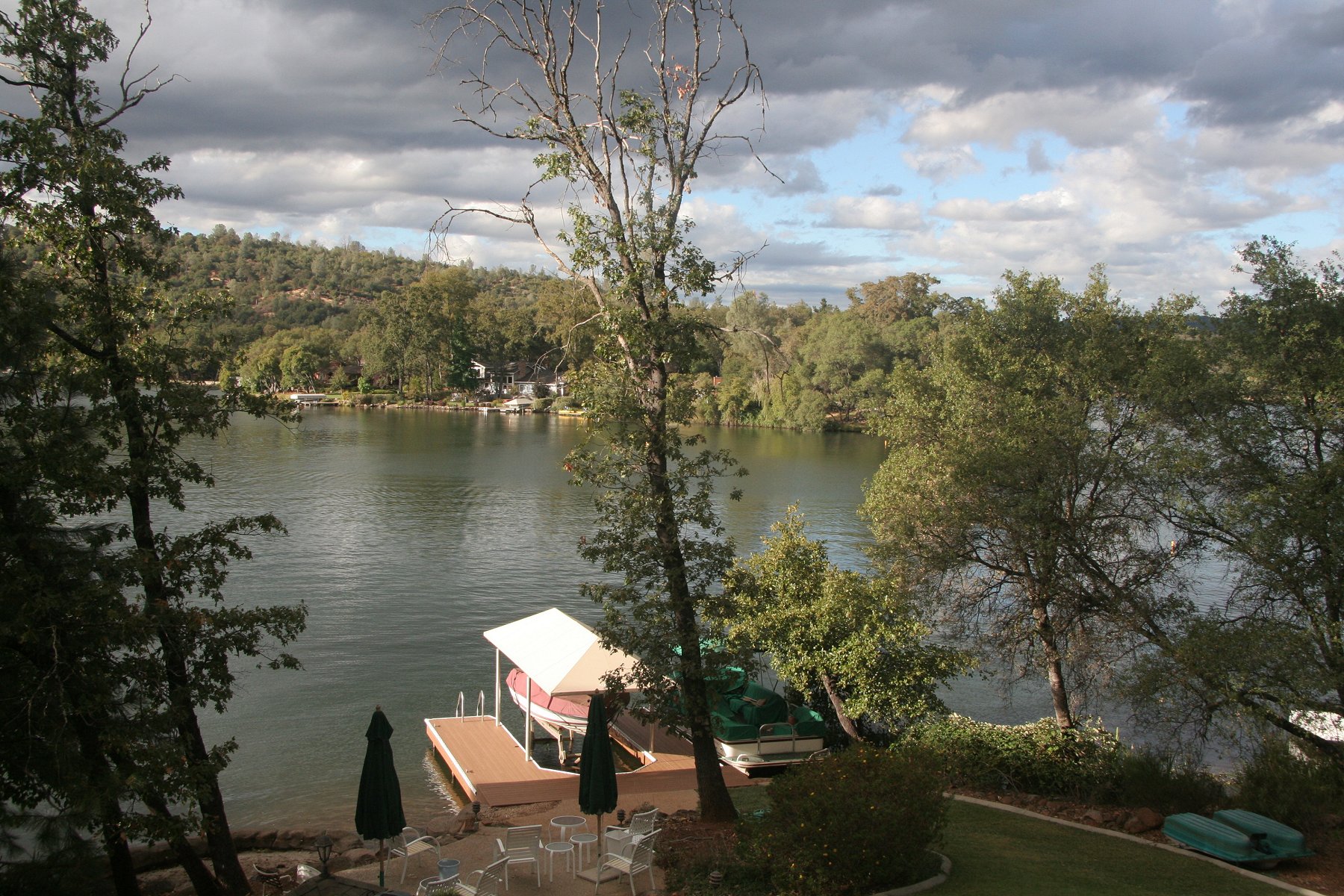

A large canvas print of this photo hangs on the hall wall outside the powder room.
