Wood's Covered Bridge at Bridgeport
Herb Lindberg

The present wooden bridge at Bridgeport was built in 1862 by David I. Wood, to replace his 1850 bridge which washed away in a storm.  At 251 feet (229 feet after the end walls were removed) it is thought to be the longest single-span covered bridge in the United States.  As with all such bridges, the cover serves mainly to keep the rain off the load-bearing structure, which would otherwise soon rot from the moisture.  Some said covers also made the bridge look like a barn so horses wouldn't be frightened to cross, but this was not universally accepted by teamsters of the day.

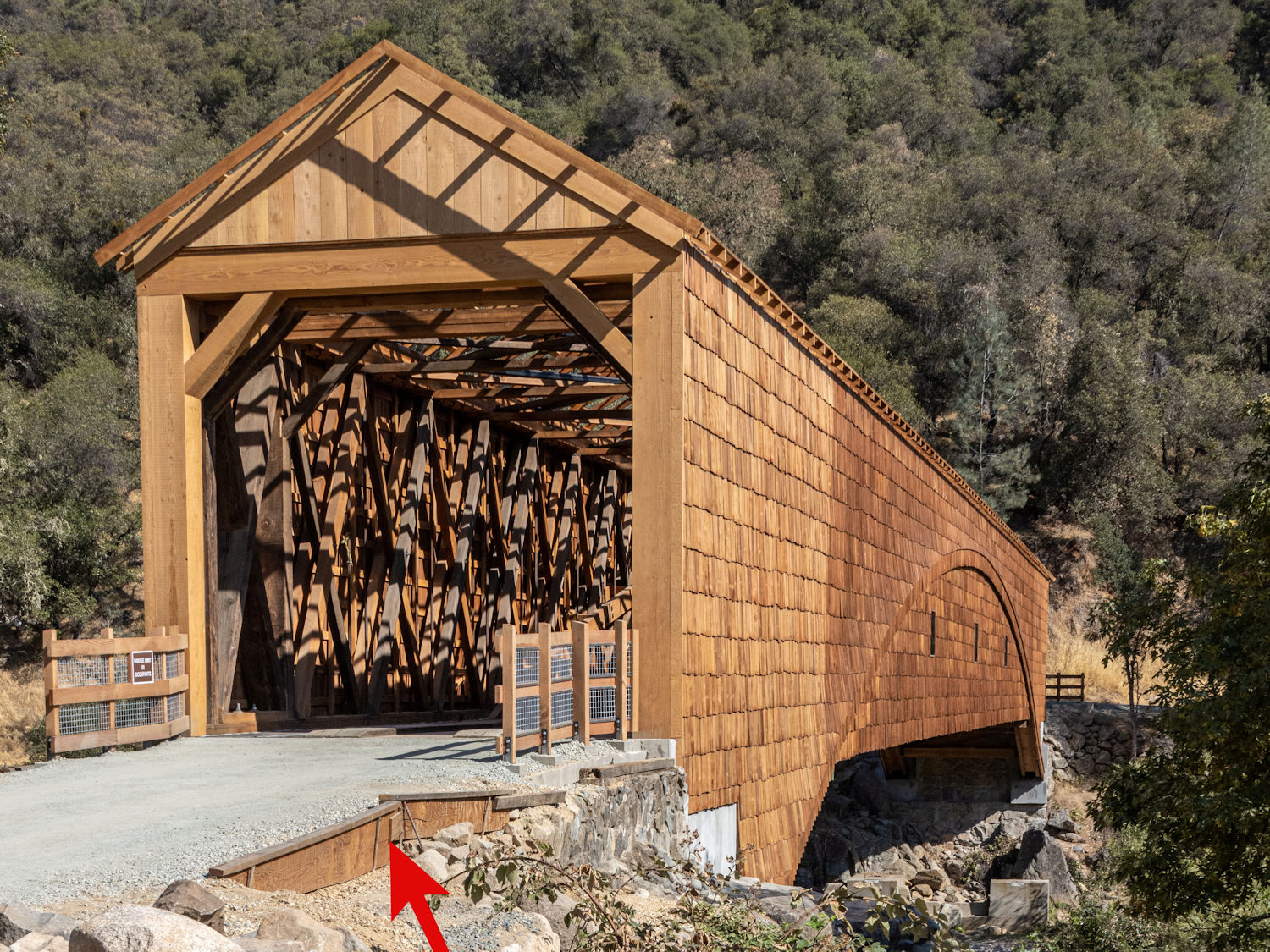

The bridge was heavily damaged in 1997 by flood-stage flow of the river, which lapped at the bottom of the bridge and threw huge floating logs against the bridge until it was splintered and near collapse.  This damage was soon repaired after heavy lobbying for funds by the community.  Then in 2010 the bridge  showed signs of severe rotting near an abutment and sagging of the span. By 2011 the damage was so severe that the bridge was closed even to foot traffic.  This precipitated another community outpouring and eventual $1.5M in state funding for a two-stage stabilization and restoration project.  A groundbreaking ceremony was held on September 2, 2014 to thank the many people responsible for obtaining the funding and celebrate the immediate start of Phase 1 construction.

Visitors enjoy a ride across the bridge during Spring Festival, April 29, 2007.
This was Cal Rowlands' last year driving his horses and classic wagon at our celebrations.

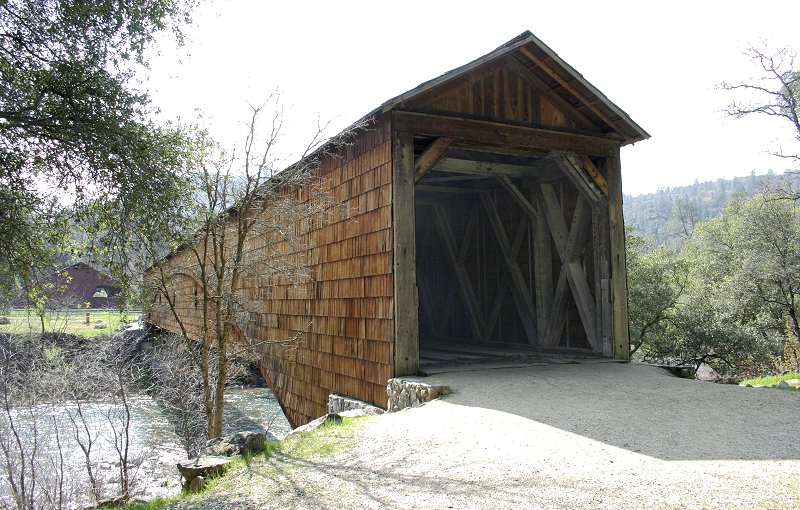

Classic view, from Park Headquarters end.
(Photo also provided to California State Parks for their brochure on the park.)

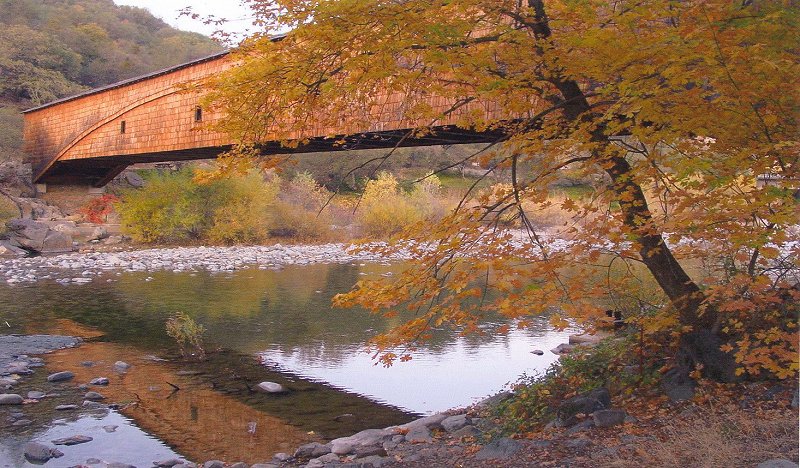

Bridge in evening with fall color
(photo courtesy of Betty Kelly)

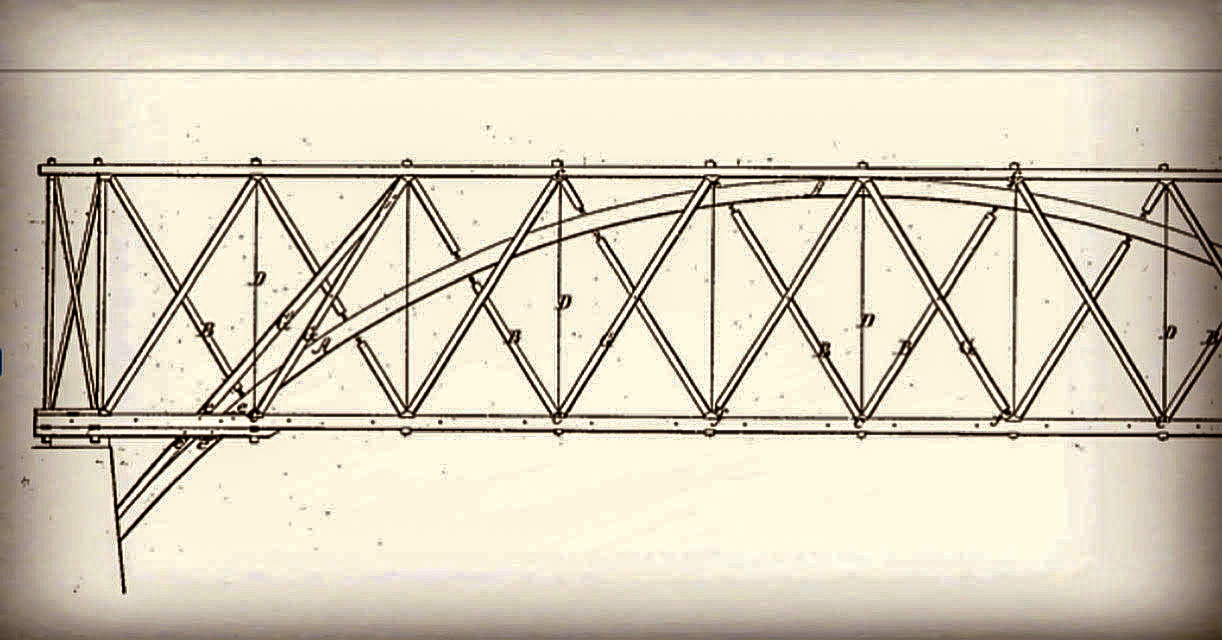

As you see here, the bridge is supported by a cross-brace truss with metal tie rods (Howe Truss) and also an arch.
This is called a Burr Arch Truss.  The truss prevents buckling of the arch as heavy loads enter and leave the bridge.
See Technical Discussion of trusses below.*


Another view of the Burr Arch Truss.
The new wood of the roof truss is part of the re-construction done after a severe storm in 1997.

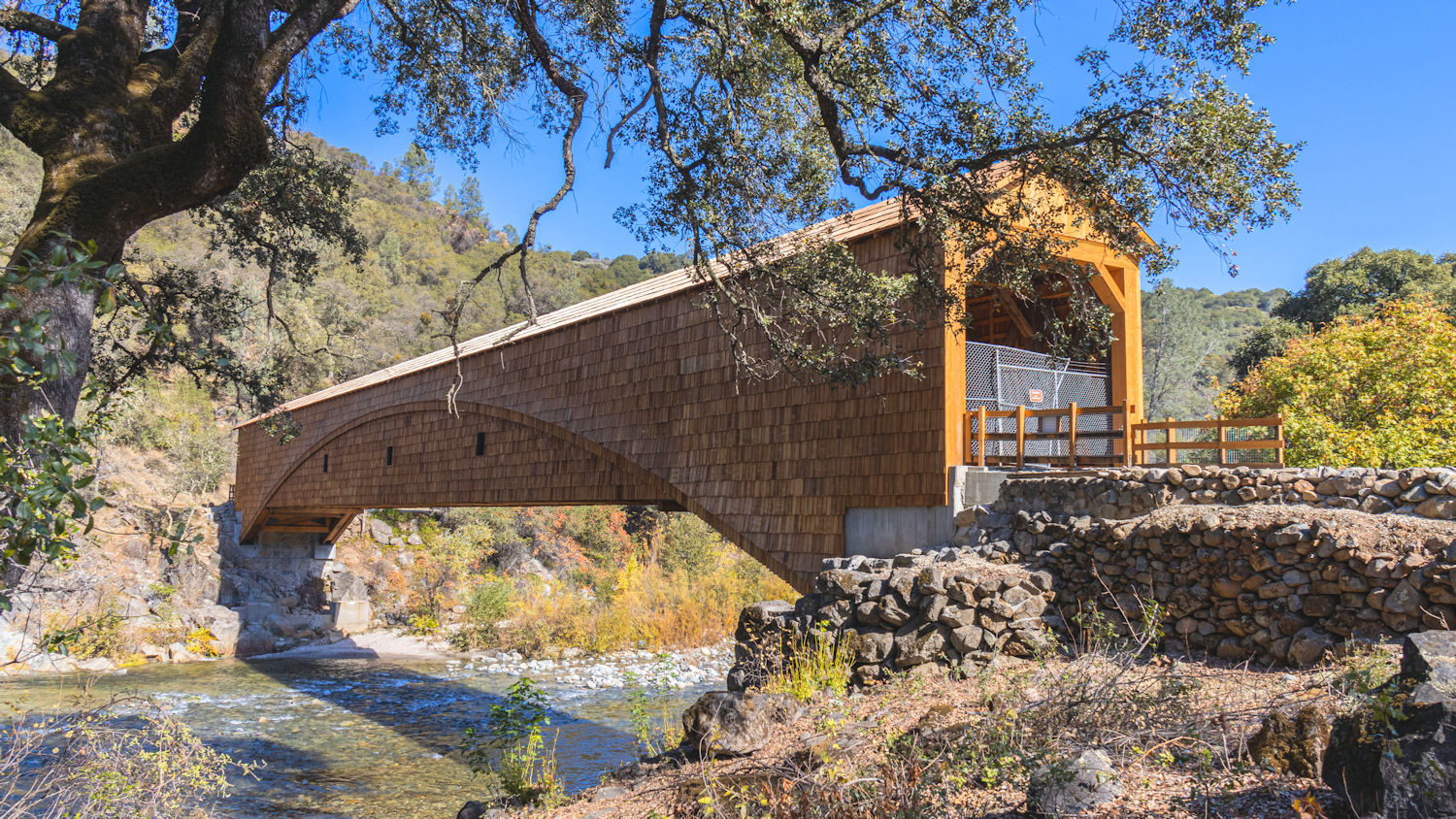

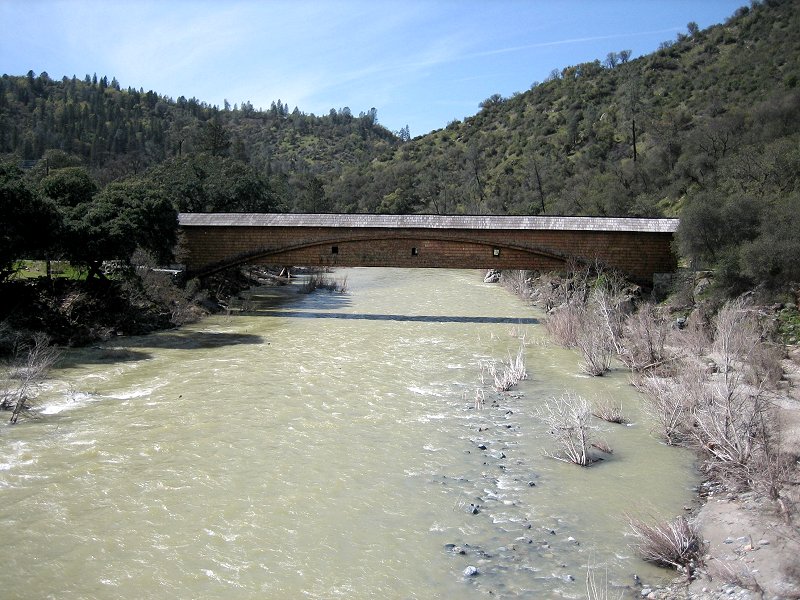

The exceptionally long span is apparent in this side view from the modern Pleasant Valley Road bridge.


A less familiar picture from the opposite end, with The Barn in the background



*Technical Discussion

You can recognize this as a Howe truss because in the main span the stronger diagonals (done with doubled timbers in this case) tilt toward the center of the bridge, which makes them compression members.  The vertical members are tension tie rods.  If the stronger diagonals tilt away from the center of the bridge, they are in tension (Pratt Truss) and the vertical members must be compression posts.  The Howe truss was favored in the Gold Rush era because it uses less wrought iron and more wood, which was available locally.  The steel bridge at Purdon Crossing (1895) uses a Pratt Truss.

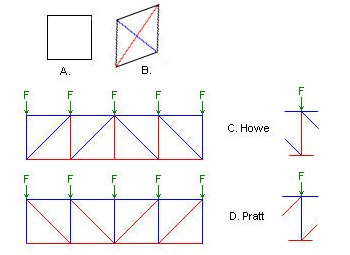

The above conclusions are explained by  considering sketches of the bare essentials of the two truss designs, taken from Howe Truss.

The rectangle in Sketch A represents an undeformed truss element sans cross member, taken from the right side of either truss.  Sketch B shows the same element in a deformed state as it is sheared by the downward load and upward resistance from the bridge abutment.  One diagonal becomes shorter (in blue) and hence is in compression, while the other becomes longer (in red) and hence is in tension.  In the Howe Truss, Sketch C, the diagonals are in the compression direction, and in the Pratt Truss, Sketch D, the diagonals are in the tension direction.  Either truss must carry the bending load (this goes one step more deeply into structural analysis than we wish to go here), which is done by the upper truss members going into compression and the lower members going into tension, as indicated by the colors.

Now direct your attention to the internal vertical members of the trusses, in particular the ones extracted in the right-side sketches.  In the Howe truss, the diagonals are in compression and are pushing outward on the ends of the vertical member, which is therefore in tension.  In the Pratt truss, the diagonals are pulling inward on the ends of the vertical member, which is therefore in compression.  These members can therefore be simple tie rods in the Howe truss but must be posts in the Pratt truss to resist buckling.

We are now in a position to look more closely at Wood's bridge to see that it indeed uses a Howe truss design. In the picture below you can see that the doubled, and much larger, timbers tilt toward the center of the bridge.  You can also see the steel vertical tie rods that extend from the top of one doubled cross member to the bottom of the next.

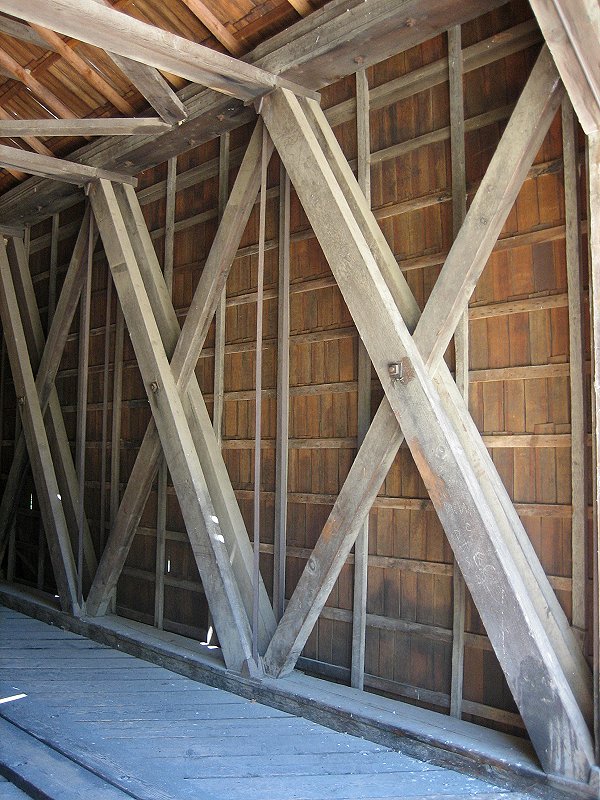

Close view near the end of the bridge (off on right).

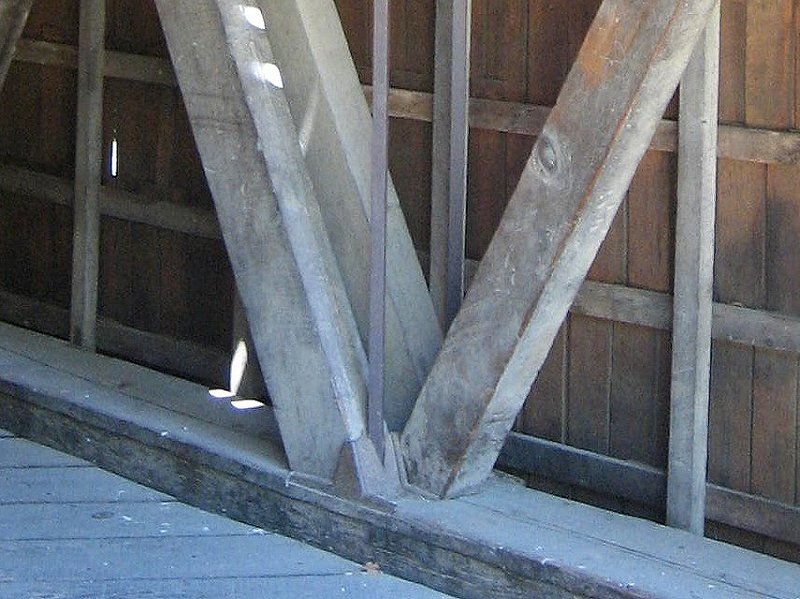

Crop into above picture to show the lower end connection of the tie rods.


The Burr Arch and Truss was designed such that either the arch or the truss could carry the design load by itself, when the load is uniform or near the center of the bridge.  When the load is near the ends of the bridge (a heavily loaded wagon and horses), however, an arch alone tends to buckle under combined compression and local concentrated load.  The added Howe truss carries local loads very well because it is uniformly strong on the scale of the brace triangles.  Note also that the first cross brace at either end of Wood's bridge has thick members in both tilt directions, again to carry local loads near the ends of the bridge which would otherwise tend to buckle the arch.
